### Re: [Projekt] Extracting Ace Combat

Thank you! I really just want to live up to Ace Combat’s standards. It’s just so well done in many aspects …

————

Going back to Ace Combat 2’s planes.

This is the Model Display, a showcase for all planes in the game (forward to 3:30):

Looking at the extracted AC2 data, we can see that directories 179–225 contain the exact background images we see in the video:

Besides the backgrounds, there are several sub-folders, one for each version of the model. They all contain two binary files and a plane texture:

The first binary file is pretty small. It starts with the plane’s name (up to seven characters plus terminating zero) and further text to be displayed. Pretty useful to me!

The second file is more complex:

But with the correct formatting, we can see that it basically contains two sections. The first section looks like vertex coordinates (just like in the terrain models!); the second section looks like triangle/quad data (but a little shorter than in the terrain):
2018-12-21 5 structured.png (7.04 KiB) 3162 mal betrachtet

Looking closely, the first three bytes are never identical and they are equidistributed between zero and the length of the first section – it’s cleary vertex indices. This gives us a first glance at the file:
You need lots of fantasy to see an A-4 here. I guess the vertex coordinates are okay, but the triangle indices are wrong. I’ll try and work it out …
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Okay, I got it – the model header is 8 bytes, not 16. My bad. Geometry is fine now …
… and here’s all models in one view:

Pretty sweet for 20 minutes of work!

Looks like the polygons are Gouraud-shaded. That’ll need some polishing of my exporter to work. Textures would be nice as well …
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

We can take another shortcut by comparing the triangle structures to those from the terrain. They are spookily similar. This gives us the following layout:

// A texture coordinate, relative to a specific texture page.
struct UVInPage {
UInt1B u;
UInt1B v;
};

// The location and layout of a texture in the frame buffer.
struct DrawAttribute_Texture {
UInt2B_LE data; // according to “Nocash PSX Specifications” › “GPU” › “GPU Rendering Attributes” › “Texpage Attribute”
};

// The location of a color palette in the frame buffer.
struct DrawAttribute_Palette {
UInt2B_LE data; // according to “Nocash PSX Specifications” › “GPU” › “GPU Rendering Attributes” › “Clut Attribute”
};

struct ModelDisplayTriangle {
UInt1B                indices[3];
UInt1B                zero0;
RGBC_8888             commandAndColors[3]; // draw command in alpha channel
UVInPage              uv_a;
DrawAttribute_Palette palette;
UVInPage              uv_b;
DrawAttribute_Texture unk_texPage;
UVInPage              uv_c;
UInt2B_LE             zero2;
};

Visualizing:
The canopy is broken, and so are some parts of the model’s underside. That’s because I got the quad structure wrong. More to follow.
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

The problem was not in the quads but in the special layout of color palettes in the VRAM. This finally fixes texture problems in some levels as well! I need to extend my PSX VRAM tutorial for that.

So much to see here. I’d love to stop and take more snapshots, but there’s so many other formats waiting to be extracted …
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

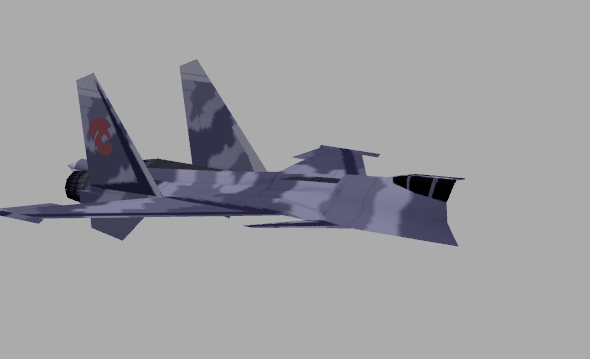

I proudly present the unfinished alpha version of the XFA-27 (without canards, with fixed wings, and with different intakes):

For reference, this is the final version:

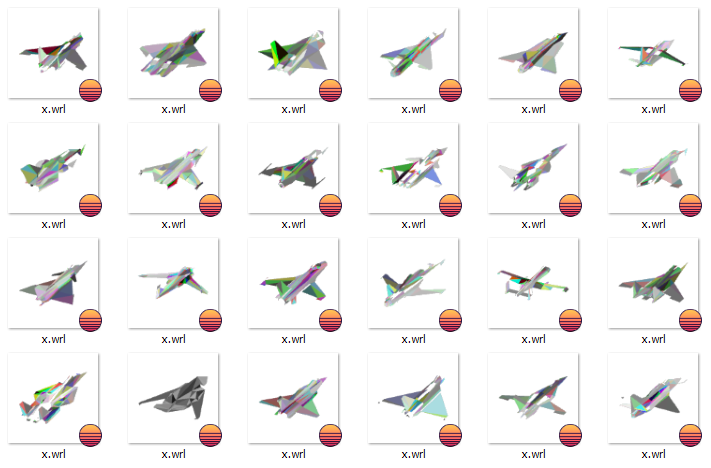

In directories 54–77, Ace Combat 2 contains models of all playable planes (three LODs plus one texture, in the same Model Display format I described earlier). These seem to be leftovers from the development phase – they have some texture errors and are not used in the final game. The XFA-27 is in the final folder.

Unfortunately, the texture coordinates are completely fubar. There is, however, an unused texture file that suggests a gray-blue paint scheme:
2018-12-21 XFA-27 4 beta.png (2.62 KiB) 3008 mal betrachtet

This is quite a surprise :) I guess it’ll take a few days for me to document everything, take snapshots, and update my galleries.
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

joeydee
Establishment
Beiträge: 667
Registriert: 23.04.2003, 15:29
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Gerade entdeckt, vom XFA-27 hat kürzlich jemand einen Modellbausatz vorgestellt: http://www.phoxim.de/forum/index.php?to ... #msg275959
Damit schließt sich der Kreis zu meinem Modellbauhobby in beide Richtungen: den Link zu deiner STL-Viewer-Seite habe ich dort bei den 3D-Druckern auch schon vorgestellt.
Ich dachte ich mach mal noch was ganz anderes außer Proggen, aber die beiden Hobbys verschmelzen immer mehr LOL

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Tatsache! Den Bausatz habe ich schonmal auf Twitter gesehen, aber ich hätte mir nie vorstellen können, über jemanden von ZFX davon zu hören :D Es ist echt eine kleine Welt. Und vielen Dank für den Link auf meinen Viewer!
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

DragonSpikeXIII
Beiträge: 4
Registriert: 10.06.2017, 02:26

### Re: [Projekt] Extracting Ace Combat

Krishty, eine frage von RythusOmega: weißt du wenn wir die Alpha/Beta versionen des Expo City und Megafloat können spielen? Gibt es innerhalb des Missionen, jede Spur?

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Question to or from Rythus?

I’m not currently modding the game to make the levels playable, and I doubt that it is possible without huge effort. The geometry and texture format is different from the final version (that’s, for example, the reason for color problems in this image). If we cannot identify old beta code in the final game engine, a conversion of the data is necessary.

I do work on a port to my flight simulator, but this will take a very long time as well.
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

RythusOmega hat einige Modelle aus Ace Combat 7 extrahiert (allerdings aus dem RAM, nicht aus dem on-Disk-Format).

Das ist interessant, weil AC7 auf der Unreal Engine aufbaut. Der Content ist zum einen verschlüsselt (AES?) und die UE nutzt anti-Debugging-Technik, damit man die Assets nicht einfach via PIX & Co. aus dem Speicher extrahiert.

Das wäre hier natürlich besonders interessant zu wissen, welche Technik das ist – vielleicht schaue ich’s mir irgendwann an, wenn ich mal ganz viel Zeit habe.
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Another fix to the levels and models on my website: They seemed overly dark all the time, and I couldn’t figure out exactly why. It probably has to do with the PSX gamma ramp, which is known to be very steep (giving PSX games their unique dark look).

In order to solve this once and for all, I’d probably have to look at the source code of emulators, but I don’t have time for that. Instead, I applied a gamma value of 0.5 like suggested on http://problemkaputt.de/psx-spx.htm#gpuvideomemoryvram :
RGB Intensity Notes
The Playstations RGB values aren't linear to normal RGB values (as used on PCs). The min/max values are of course the same, but the medium values differ:

Code: Alles auswählen

Intensity        PC      PSX
Minimum          0       0
Medium (circa)   16      8
Maximum          31      31
Ie. on the PSX, the intensity increases steeply from 0 to 15, and less steeply from 16 to 31.
This indeed looks much better.

By the way, I moved the website to http://krishty.com/acecombat_en a while ago to seperate my hacking stuff from my 3D tools.
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

A few days ago, this video was quite popular. It shows a player breaking out of a canyon mission – which normally fails as soon as the player exceeds a certain altitude. He finds mysterious geometry in the no man’s land:

As tl;dr, DragonSpike commented correctly: This geometry is used for the mirroring on the water surface.

But there is an exctracted version of the level on my website, so let’s look at the details!

This is an overview of the level:
We see the actual canyon in the center, the mirroring on the right, and the cutscene’s landscape on the left. This is consistent with the player flying towards East to find the hidden geometry.

Here’s both canyons combined via Gimp:
You can see the mirroing nicely here. Also notice the distortion in the mirrored texture maps.

Here’s the cutscene terrain. According to our overview map, it should be reachable by flying West. However, nothing is there. Just a few textured quads.
One very strange thing is the underside of the level, which is not normally accessable:
I have no idea what these colors mean. They could be leftover data from the level editor, because the Geofront tunnel mission has similar quads. We’ll probably never find out.
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

death_the_dogs HD-Panoramaaufnahmen und Übersichts-Renderings aus Ace Combat 4, 5, und Zero.

Er hat dafür die Spiele im PlayStation-2-Emulator PCSX2 geladen, mit einer Cheat Engine herumgespielt, zahllose Screenshots gemacht, und diese mit Photoshop zusammengefügt.
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

argonbolt
Beiträge: 3
Registriert: 07.08.2019, 22:00
Echter Name: Dave

### Re: [Projekt] Extracting Ace Combat

Hello, first off thanks for all the work Krishty in regards to code diving and extracting everything.
I am some one who has made a series of videos reviewing the series. While searching for images i came across your project and was very impressed by some of the renders.
I and some other AC fans i know were wondering, would it be possible for you to create some renders of Port Edwards and St Ark from Ace Combat 2? Your renders of the AC3 maps are fantastic and very cool to see the whole level in full without render distance limitations.
Once again thanks a ton for your dive into the files for AC3 and AC2, as a newer AC fan discovering these games, i was always blown away by how little their many qualities were discussed relative to the newer titles.

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Yes, I have extracted copies of Port Edwards and Saint Ark here. Do you prefer Saint Ark at day or at night, or both? Please mind that I have yet to decode some model positions, so a few parts of the cities will be missing – most notably some bridges …
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

argonbolt
Beiträge: 3
Registriert: 07.08.2019, 22:00
Echter Name: Dave

### Re: [Projekt] Extracting Ace Combat

I think both St Ark day and St Ark night would look very cool, personally i dont mind elements missing at all as just having the larger view is amazing, im a big fan of the late 90's painted pixel texture look. To this day i think Port Edwards remains my favorite AC night mission for certain. And once again thanks for the efforts!

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

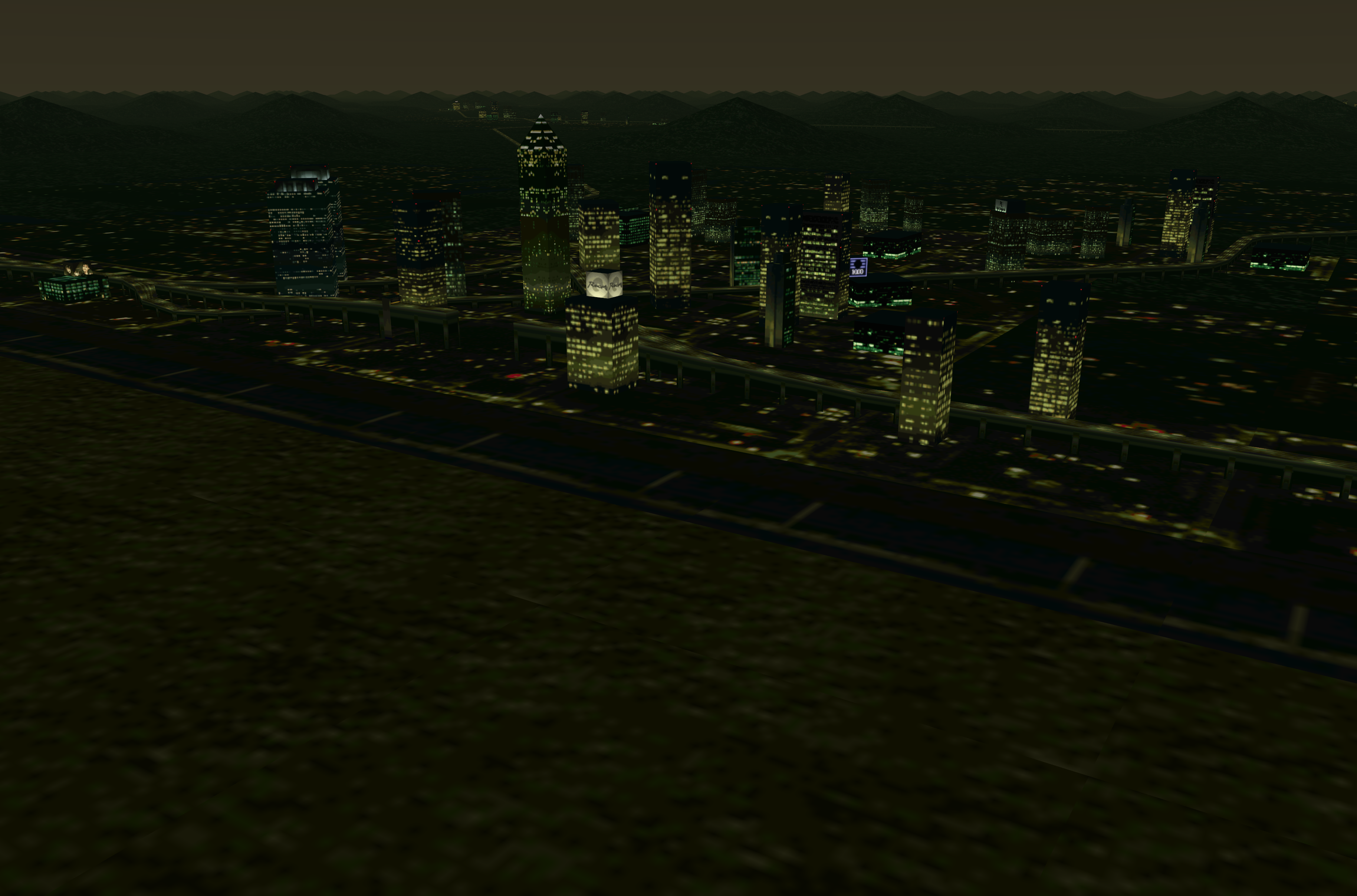

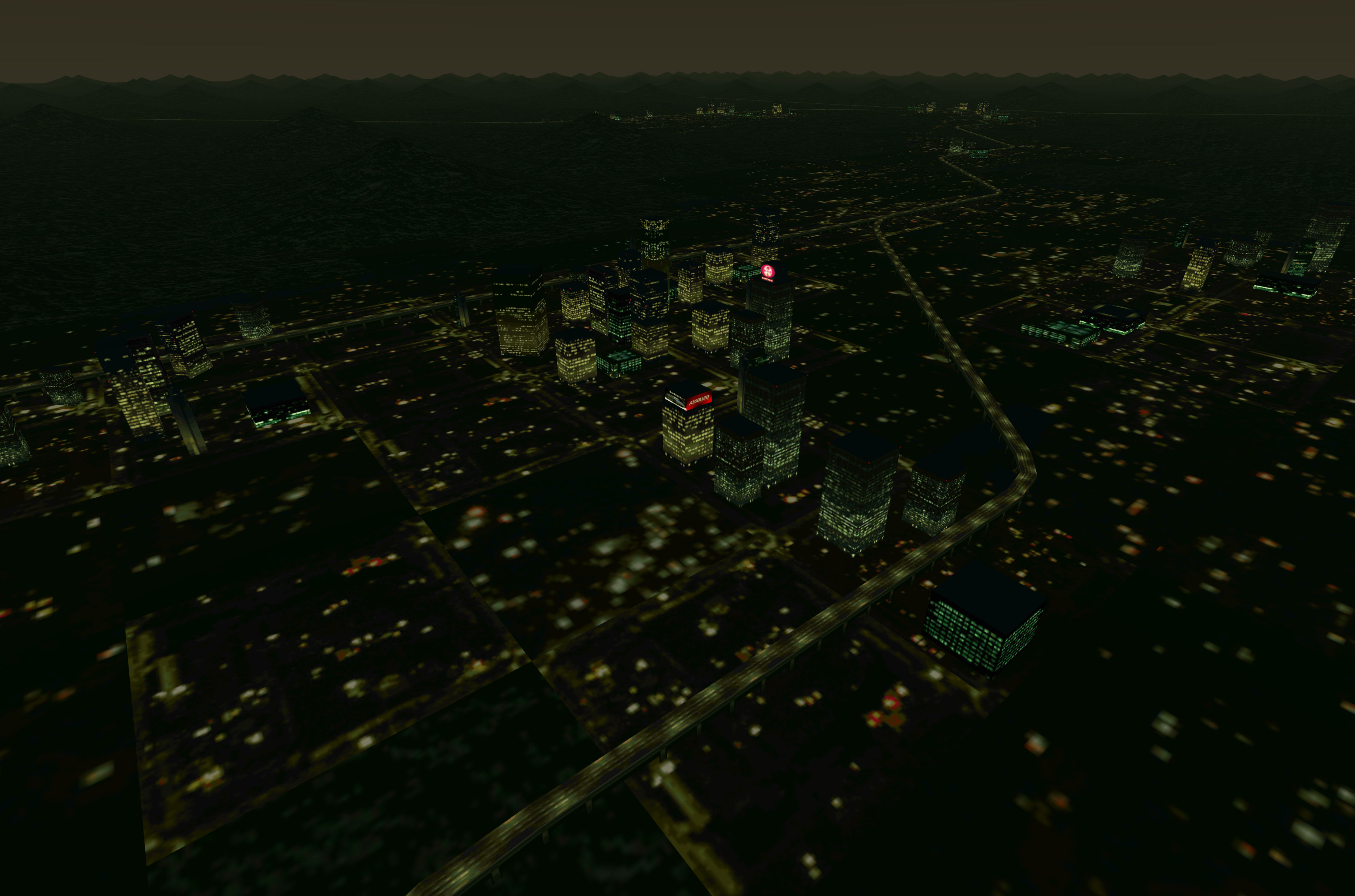

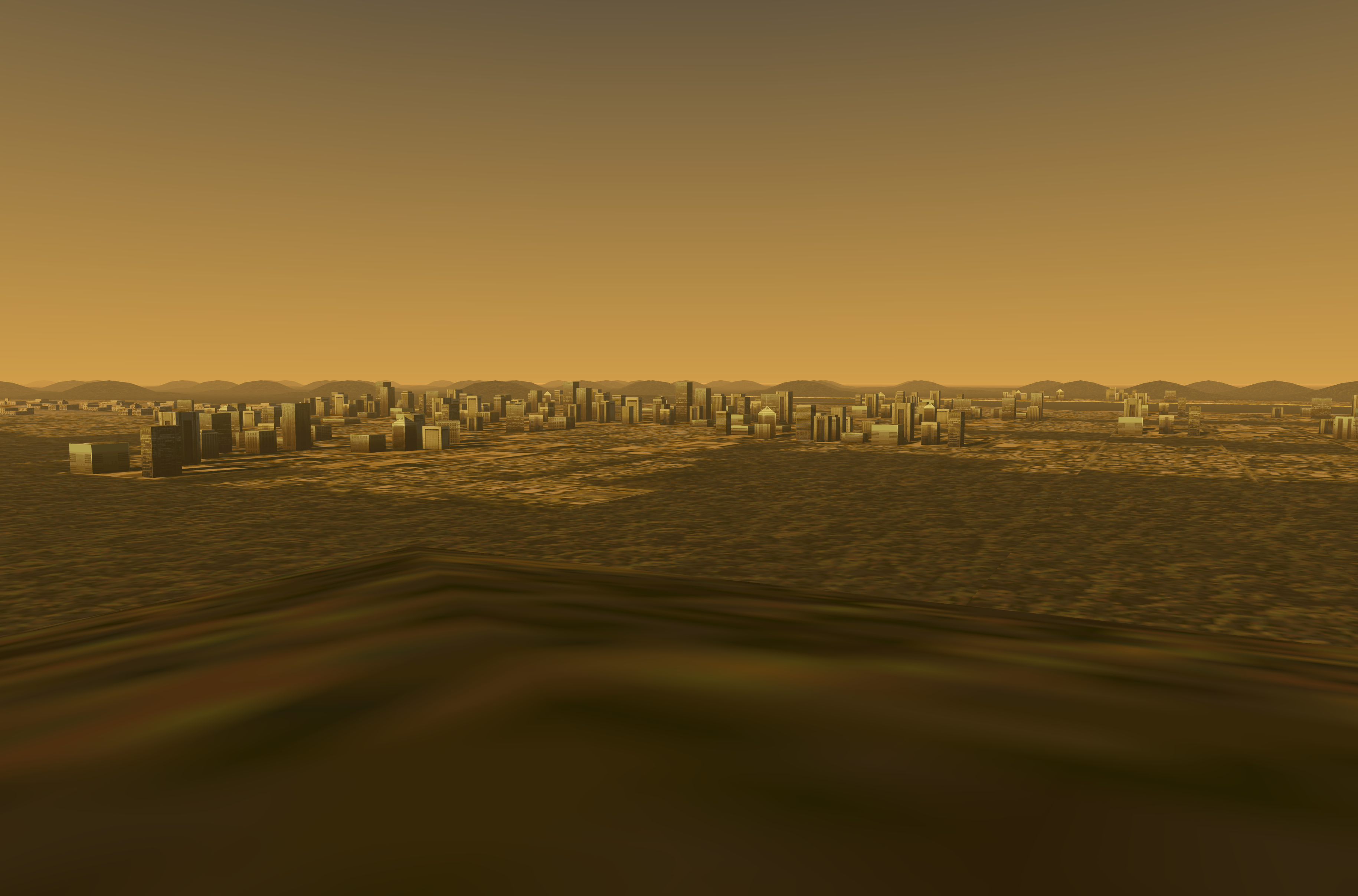

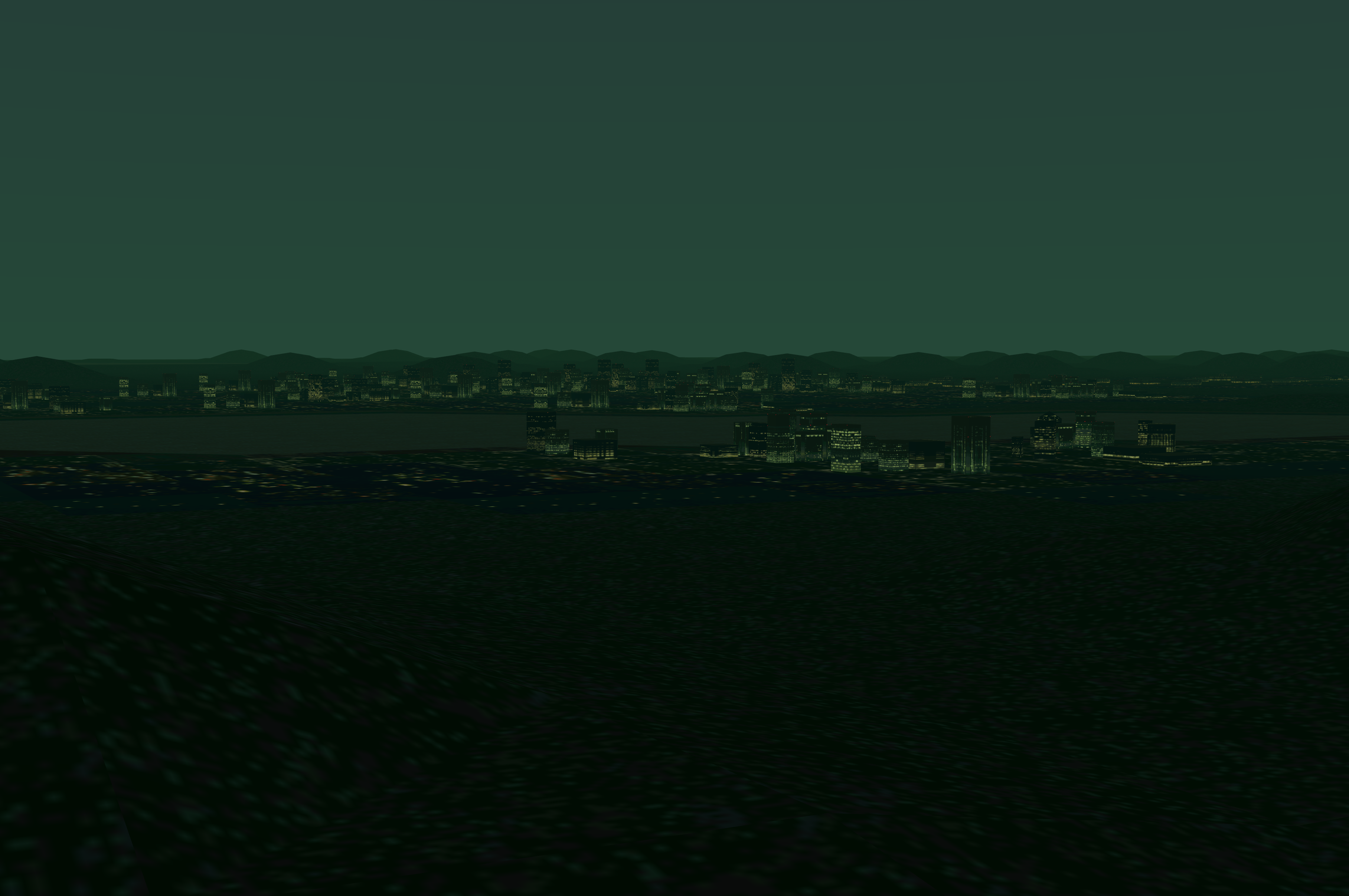

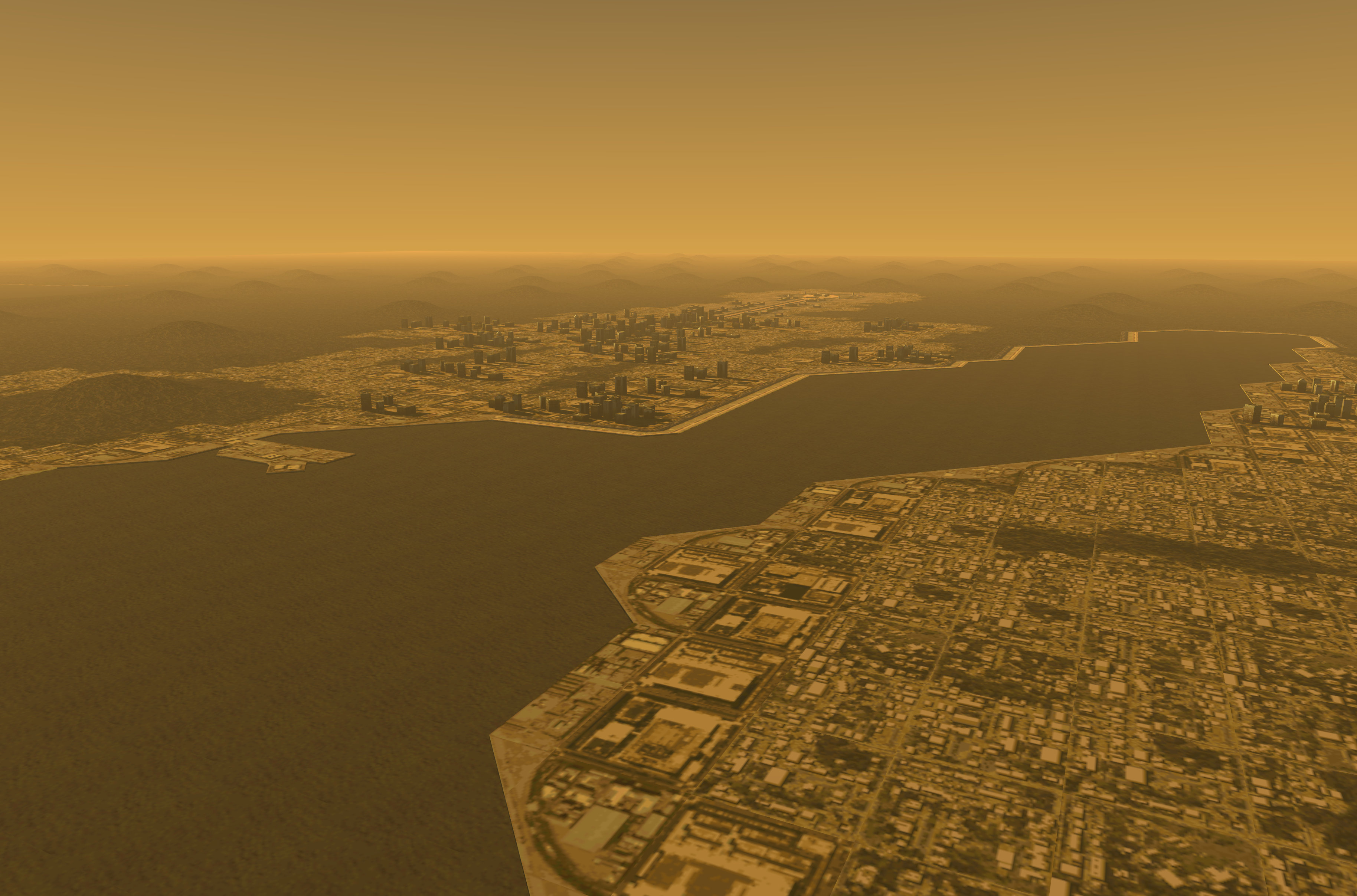

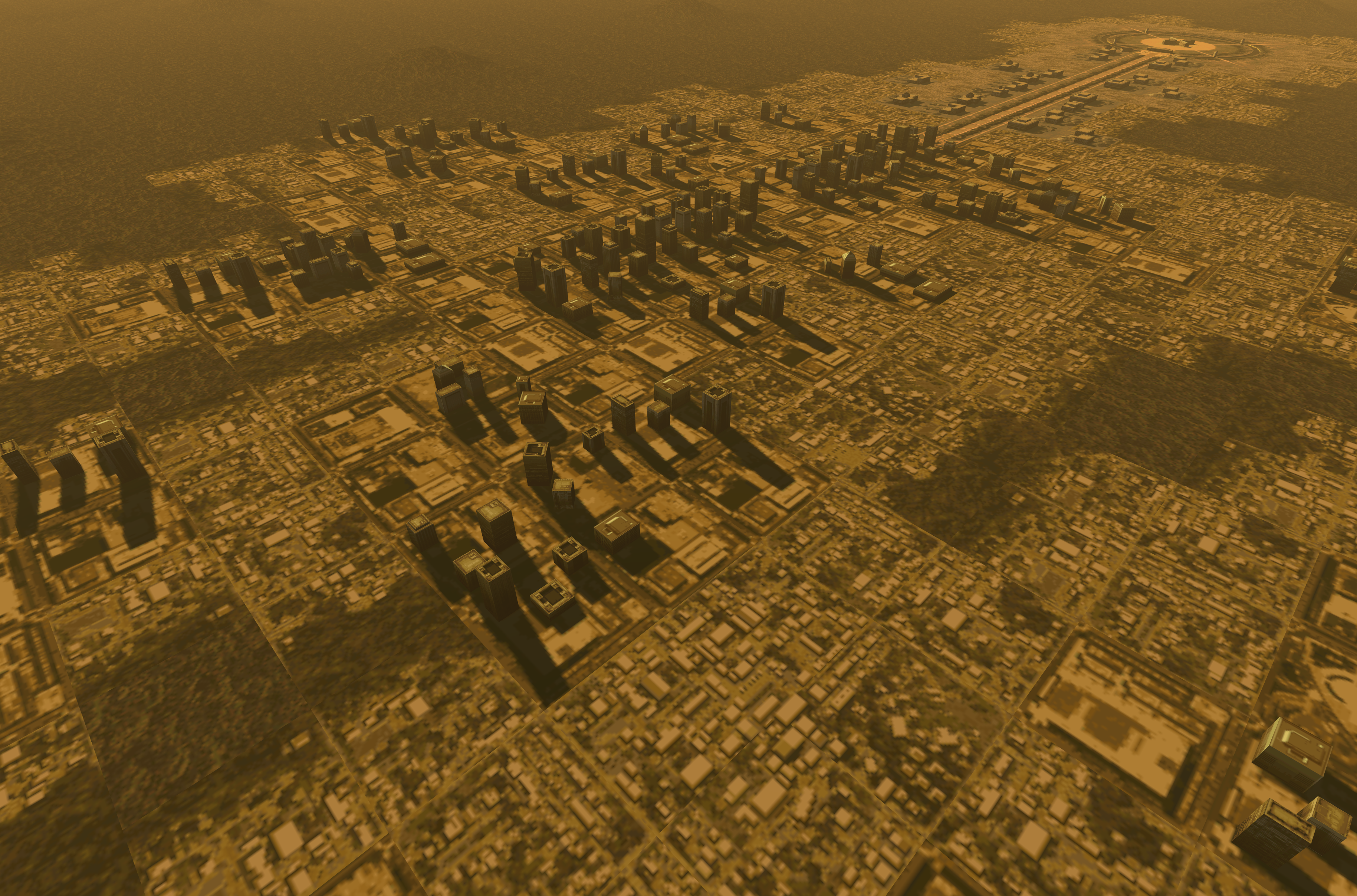

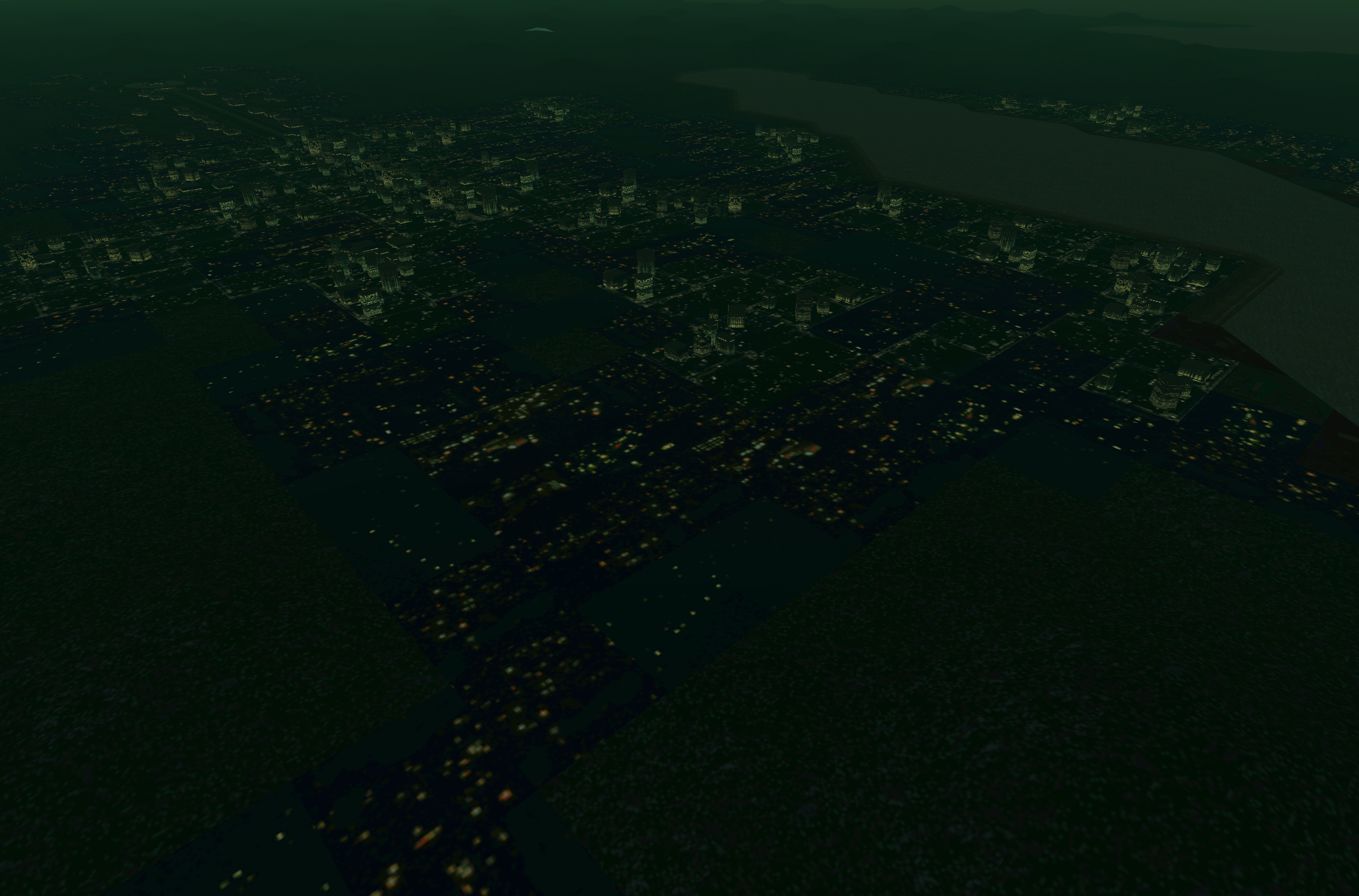

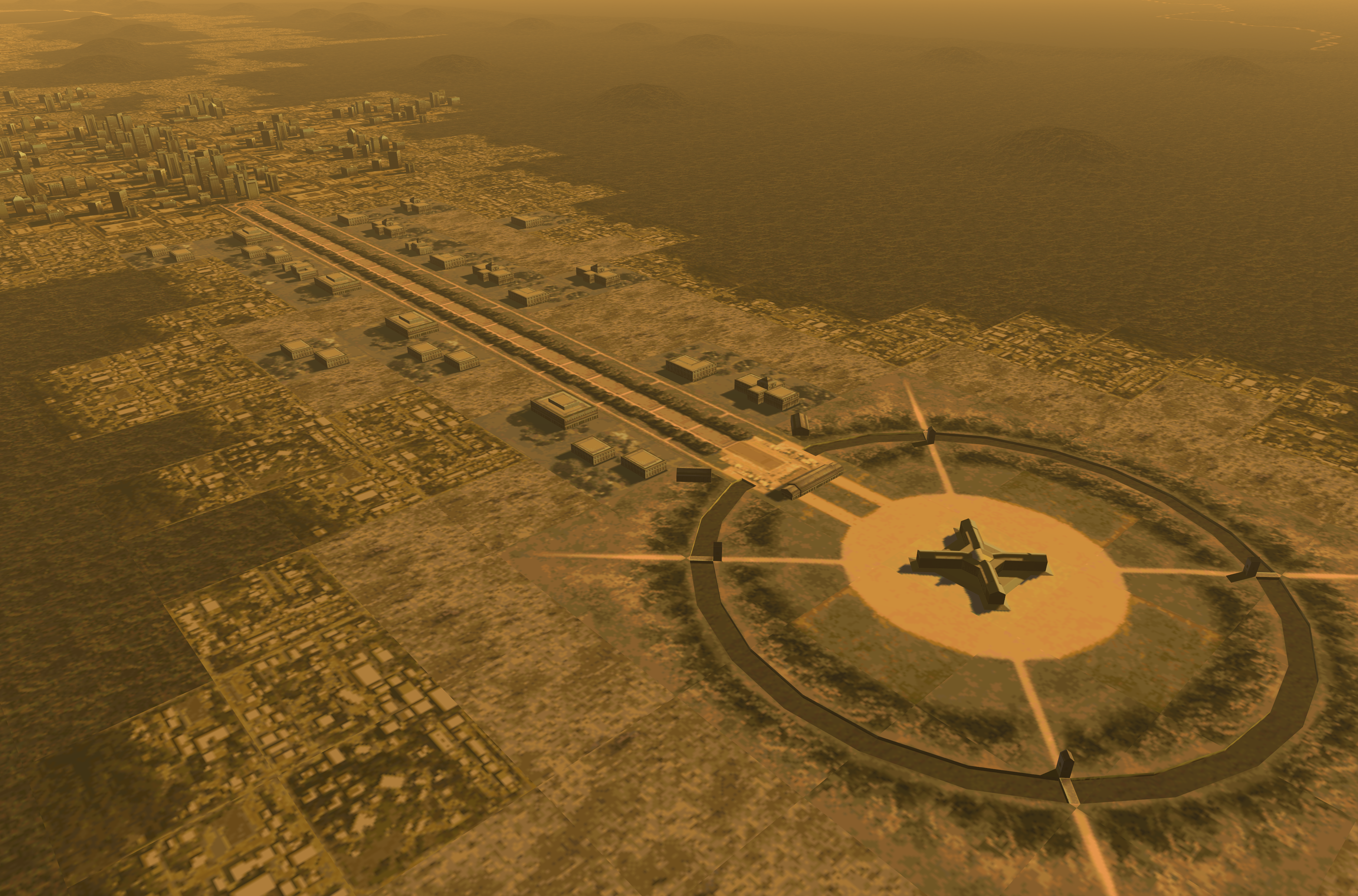

Check these out:

I would have liked to give you the files and software directly so you can record the cities yourself, but the atmosphere settings are not fully implemented so I had to hard-code stuff for individual levels and it’s just a pain to use. I’ll release a better version later.

I’ll upload the snapshots to my website next weekend, no time for that right now. Feel free to use them for whatever you like.

A note to your Ace Combat 2 video: You mention the clunky controls without rolling, but you can easily change that in the options by switching to expert controls. I don’t recall anyone seriously playing the game with novice controls :)

Your videos really deserve to have more views …

seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

argonbolt
Beiträge: 3
Registriert: 07.08.2019, 22:00
Echter Name: Dave

### Re: [Projekt] Extracting Ace Combat

Wow! Those look great! Thanks for the renders.
Yeah sorry about AC2, i only recently played it in the last year, so only after finishing my upload of i think 5 did i realize "Oh there is expert controls" duhhhhh, i felt very dumb to not notice.
In general i have very much been amazed by how detailed and interesting the PS1 games in the series are, it is a shame they are so often overshadowed.

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Krishty hat geschrieben:
06.07.2019, 19:06
death_the_dogs HD-Panoramaaufnahmen und Übersichts-Renderings aus Ace Combat 4, 5, und Zero.

Er hat dafür die Spiele im PlayStation-2-Emulator PCSX2 geladen, mit einer Cheat Engine herumgespielt, zahllose Screenshots gemacht, und diese mit Photoshop zusammengefügt.
Oh, it’s even better than that – he recorded videos all along!

Here’s him increasing range of sight and weather speed (watch the clouds rush away):

Here’s an unused mission Sitting Duck:

A shooting range for ground target tests:

… and so much more: https://www.youtube.com/channel/UCizg3E ... ZVw/videos
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

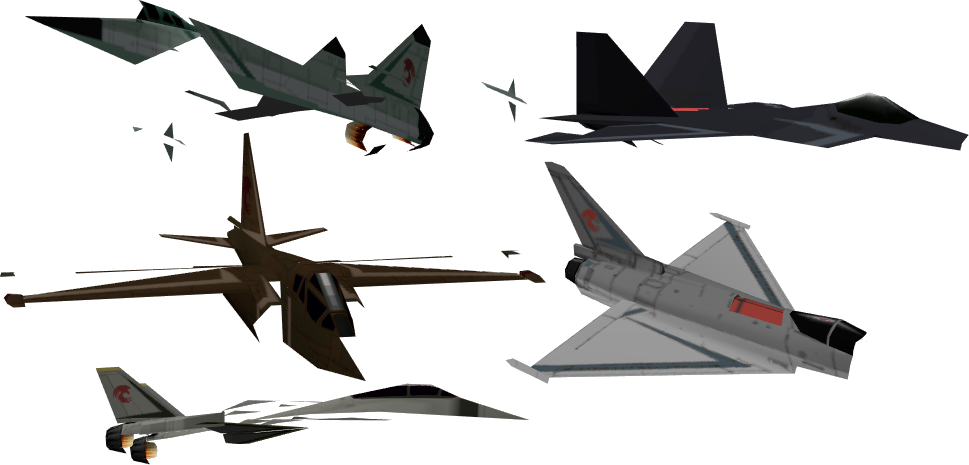

Ostrich used my extracted Ace Combat 2 models for his remake of the Death Rave 2000 paint scheme in Ace Combat 7, and the result is spectacular:

Before & After:

20 Years of graphics development there :)

seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

I’ve added Argonbolt’s snapshots to my gallery.

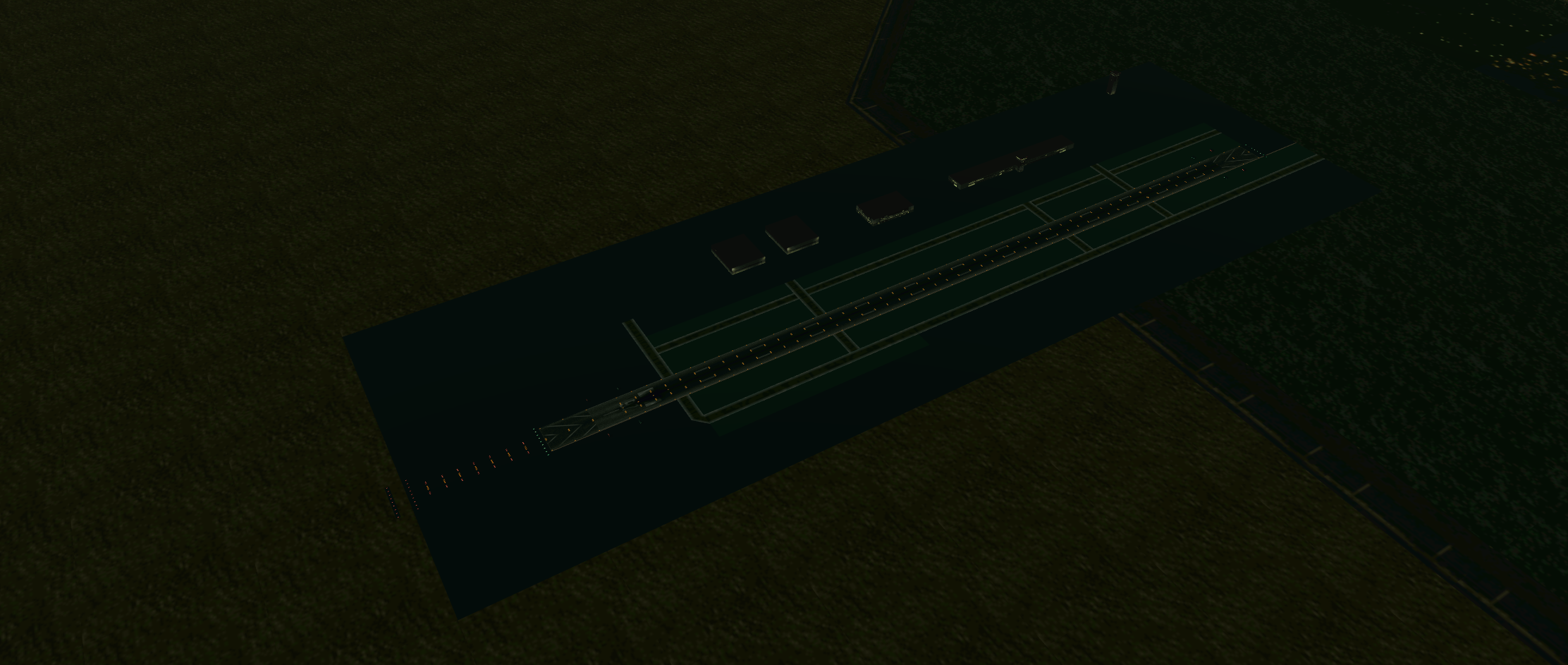

One interesting detail I had skipped: Port Edward’s airport is an ugly mess. It looks like they added in a hurry just to serve for a landing mission or something like that. Just a flat black polygon for ground and not at all integrated with the rest of the city.

seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Thanks a lot for the shout-out, Argonbolt!

seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

Thank you for the support, Ostrich! I’ve been following your work closely for some time, and I’m glad I’ve been able to contribute!

seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

So … Ace Combat 3 version 1.0 vs 1.1.

For the big picture, you can read DragonSpikeXIII’s post on ROMhacking.net:
http://www.romhacking.net/forum/index.php?topic=17658.msg367238#msg367238 hat geschrieben:All right, here's a recap of the dealio with 1.0/1.1 that me and other curious users dealt with here a couple of years ago.

First things first, don't let the naming scheme cofuse you, 1.0 is the PlayStation the Best reprint from 2000 and 1.1 is the original print from May 27, 1999. Testers from a known PS1 image archival group, whose name I forgot, made a mistake and mislabeled them, and added a bit of confusion on top.

Second thing is the original print, "1.1," is the more recent build, believe it or not. Usually reprints, no matter which region, are either identical to the original release or updated with fixes and additions, bit with AC3E it's the opposite. If you mount "1.0" on your computer you'll see the files were burned on May 20th, 1999, which happens to be the release date for China. "1.1" files were burned on disc on May 27th, 1999.l, the Japanese release date.

Third, the only real difference that I could find is that there's an additional file in one of the game's folders inside the BPB, a compressed container that houses all subtitles and graphics and maybe models used by the game (this project's bread and butter). The file itself is nothing special from the little that I can remember. And this, I think, is the main reason that our translation patches don't support the "1.0" reprint, this one file changes the index (which I think is the file that ends in .BPH) by one so every file after that gets moved up by one, and our AC3 Toolkit doesn't like that.

Anyway, since we already support the original and more up-to-date version of the game, I've ceased pursuing support for the reprint, as well as the Chinese release, for that matter. We dodged a bullet here, because when EsperKnight began working on the Toolkit he found "1.1" and based his work on that version thinking that it was a bugfixed re-release, little did we know back then that it was the original, and that that one was the more recent version.

So if you want to play the game with our fan-trans, secure a "1.1" copy. You can find checksums for it on our RHDN page (translation number 2307). Checksums for the next translation release will also be present on the ReadMe file after someone requested it when I released version 2.0 of our fan-trans.
Alright – what’s most interesting from my perspective (data mining) is the additional file he mentions. What’s up with that?!

First off, I lost my copy of the 1.0 version. And that’s really bad because I can’t find it online any more. It seems the only location to download it was emuparadise, but they stopped providing downloads some time ago. Luckily, there’s a workaround.

The files on these discs do have a time stamp of 1999-05-20 02:00 UTC, a week before the Japanese release date. Perfect!

So I used my tools to extract both versions and diffed the results.

Indeed, 114/3/12.dat is present only in the earlier build. I haven’t extracted this range of files yet – they seem associated with the UI, not with levels or planes – so I cannot say anything specific.

The mission A Canopy of Stars is different. I can’t say for sure because, again, I haven’t decoded the affected file yet. It could be different enemy placement. All other missions and planes are identical.

A Japanese character has been replaced in one of the texts. Okay.

But what’s more interesting is, there are hundreds of different TIM texture files. And they are not visually different – just the data is. What the heck is going on?!

Remember that Ace Combat 2 was patched in Japan? The patched version provided better translation, but it also removed a few strings from Namco’s build environment which were left in uninitialized memory in the briefing files of the first Ravine mission.
https://zfx.info/viewtopic.php?f=10&t=4110&start=30#p55161 hat geschrieben:a string table in 1.0 being padded with “04EAS.PLY P:\UNIX\PX201\BRIEFING\WO” instead of zeroes in 1.1
You would think that the developers learned from this, but … nope. All the texture files that were changed between 1.0 and 1.1 had uninitialized colors in their palette entries. There is a common pattern in the uninitialized memory:

9\H-I386~1\BIN;Z:\PUBLIC
L\PERL\5~1.005\BIN\MSWIN
SR\SRC\BIN;Z:\PUBLIC\;C:
1.005\BIN\MSWIN3~1;C:\PE
OUND;\USR\SRC\BIN;Z:\PUBLIC;C:��ERL\5~1.005\BIN\MSWIN3~1;C:\PE
USR\SRC\BIN;Z:\PUBLIC;C:

Solving the puzzle, we can be pretty sure Namco’s build process had the following in its environment:

OUND;\USR\SRC\BIN;Z:\PUBLIC;C:\PERL\5~1.005\BIN\MSWIN3~1;C:\PE

\H-I386~1\BIN;Z:\PUBLIC��������L\PERL\5~1.005\BIN\MSWIN

Perl and Windows 3.1 and Unix systems :)

Funny thing, they couldn’t replace *all* of the occurences. A few textures contain the string in their uninitialized palette colors even in 1.1, just with an additional backslash after Z:\PUBLIC.

You should initialize your memory, really. Especially if the result is to be pressed onto a million disks and your employer is strict about data leaks.

Other paths from debug functions in the executable:
sim:\usr\src\t_dp%4d.tim
sim:\usr\src\display.tim
sim:\usr\makepack\pta\tim\��.tim
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

I’m afraid I’m a little too late for the party (almost two years, actually) … but I just found out that Runway 25 Productions imported some of the extracted Ace Combat 3 models in Cinema4D and recorded them in amazing 360° VR footage:

This is the first time I see the levels from a first-person view. Just brilliant!

Arkbird, SOLG, R-352:

seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne

joggel
Establishment
Beiträge: 1424
Registriert: 06.11.2007, 19:06

### Re: [Projekt] Extracting Ace Combat

Cool videos :)
CEO of Dirty Codez Production®

Krishty
Establishment
Beiträge: 6945
Registriert: 26.02.2009, 12:18
Benutzertext: state is the enemy
Kontaktdaten:

### Re: [Projekt] Extracting Ace Combat

DragonSpikeXIII, I know you’re monitoring this thread, so I’m writing it here: Thanks a lot for linking me, and I’m so excited about your progress with AC3!

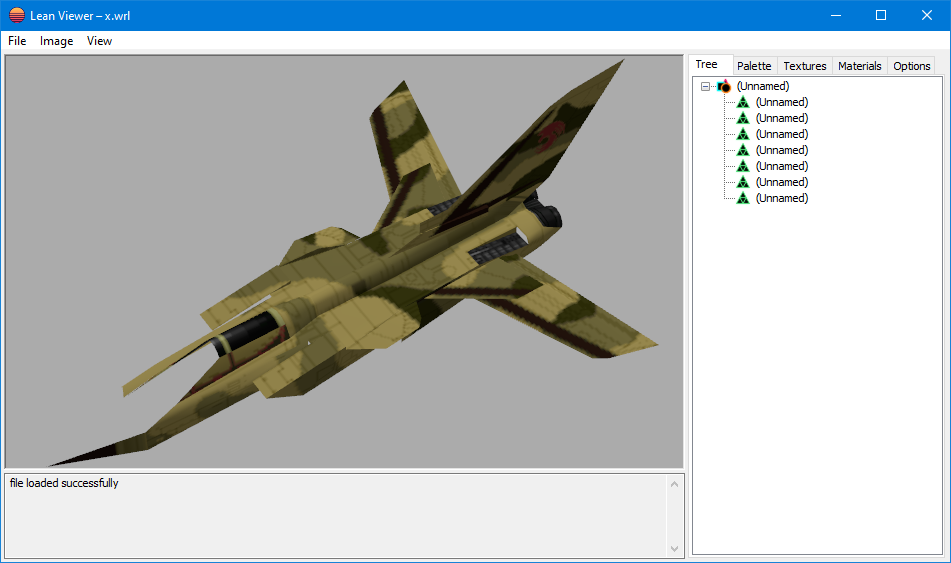

Concerning my datamining, I’m still working on Ace Combat 2’s player modes. Thanks to Rythus, I’m on the right track; however, it’ll take me some more time to understand the model format in its entirety (with textures and so on).

Finally, Argonbolt’s Ace Combat 7 review has arrived. While the videos are long and I don’t agree with every argument, I found them very worthwile. They point out exactly how you should plan the world you create, the logical/economical/philosophical ties you need to consider, the ground rules of storytelling – which should be especially important to developers like us here on ZFX. And I had some good laughs as well.

I also noticed that Argonebowled’s criticism from his fandom video lead to actual changes in the Acepedia’s handling of Ace Combat 2. A good reminder that you can improve things when your criticism is well-thought, well-pointed, and when you don’t give up to the mob. (Not trying to be negative about Acepedia here. It’s great actually, but I’m just not really involved apart from the flaws Argon pointed out.)

I hope for his latest videos to have similar influence on Ace Combat 8 :)
seziert Ace Combat, Driver, und S.T.A.L.K.E.R.   —   rendert Sterne
